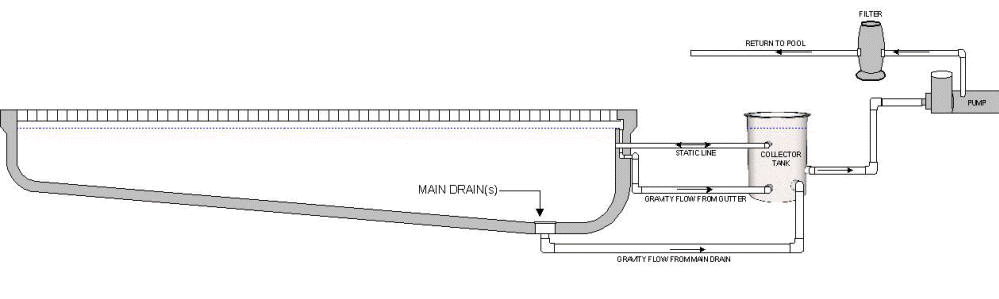

IN A TYPICAL NON-DIRECT SUCTION INSTALLATION, POOL WATER FLOWS BY GRAVITY TO THE COLLECTOR TANK AND IS THEN PUMPED THROUGH THE FILTER AND RETURNED TO THE POOL.

• GRAVITY FLOW REQUIRES LARGER PIPING THAN PUMPED SUCTION.


• A NEW COLLECTOR TANK CAN BE EQUIPPED W/ A VACUUM D.E. FILTRATION SYSTEM AND                  A DROP IN CHLORINE GENERATOR.


• OUTDOOR INSTALLATIONS WILL REQUIRE THE TANK TO BE EQUIPPED W/ A LOCKABLE COVER.


• PROPORTIONING VALVES ARE USED TO CONTROL THE FLOW OF MAIN DRAIN - SURFACE         SKIMMER GUTTER.


• IN GUTTER POOLS THE MAIN DRAIN AND GUTTER LINES MUST BOTH BE GRAVITY FLOW
